Advanced Spectral Imaging Architecture
BlueVision delivers high-performance line scan cameras and prism-based multi-sensor line and area scan imaging systems, designed for industrial applications where conventional Bayer or trilinear architectures are insufficient.
By separating incoming light optically through a calibrated prism onto multiple sensors that share a single optical axis, BlueVision systems maintain pixel-level registration without requiring spatial compensation. This architecture prevents colour fringing and halo artefacts under camera tilt, surface height variation or web vibration, and ensures stable spectral performance even when object speeds vary.
This optical design enables advanced imaging configurations including flexible spectroscopic imaging across UV, visible and SWIR wavelength bands, sensor off-set technology for capturing multiple focal depths of the same object, independent polarisation imaging, and Scheimpflug-based sensor tilting to correct image blur in off-axis installations.
BlueVision platforms are typically deployed where inspection stability, speed, spectral differentiation and mechanical robustness are critical to system performance.
Platform Capabilities

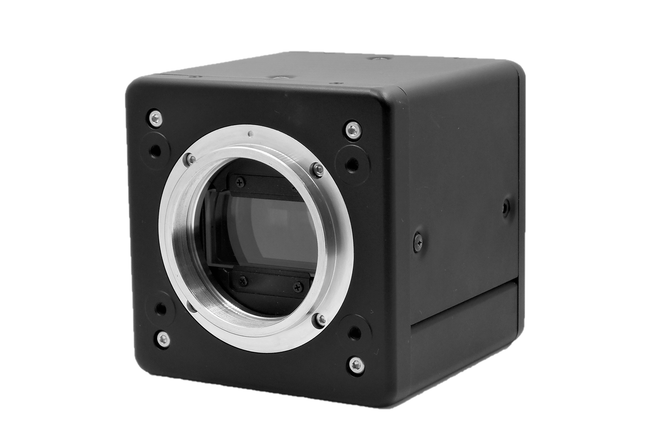

Prism-Based Line Scan Spectroscopic Cameras
Multi-sensor prism architectures separating light into 2, 3 or 4 calibrated wavelength channels along a single optical axis.

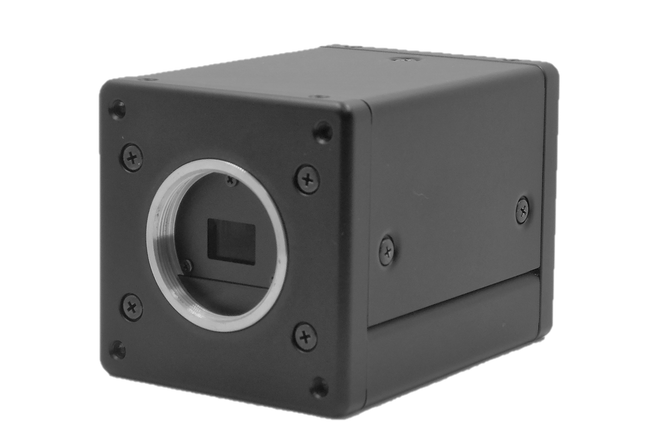

Prism-Based Area Scan Cameras
Multi-sensor prism systems for area imaging where spectral separation and pixel registration are required in static or semi-static inspection environments.
Spectral & SWIR Single-Sensor Cameras
Dedicated InGaAs and SWIR imaging platforms covering approximately 900–1700nm and extended ranges up to ~1900nm.
Advanced Spectroscopic & Polarisation Technologies
NUV + Visible imaging for Electrostatic discharge (ESD) visualisation; Sensor off-set, polarisation and Scheimpflug-based sensor tilting imaging.
Typical Application Areas
Optical Sorting & Material Classification
Spectral differentiation enables reliable material discrimination and contamination detection in high-speed sorting systems.
Learn moreFood Quality & Foreign Object Detection
Multispectral contrast reveals defects, contaminants and foreign objects invisible to conventional RGB inspection systems.
Learn moreElectronics & PCB Inspection
Prism-based multi-sensor architectures detect solder defects, component placement errors and component level surface variations with high contrast.
Learn moreSWIR Inspection Through Packaging
InGaAs and extended SWIR sensors enable imaging through semi-opaque packaging, coatings and films.
Learn moreRecycling & Plastics Separation
Spectral signatures enable reliable identification and sorting of mixed plastic streams and contaminated material lots.
Learn moreBlueVision Camera Systems
High-speed line scanning for continuous web and surface inspection with simultaneous spectral capture across multiple bands.
High‑precision prism‑based line scan cameras delivering accurate multi‑channel spectral imaging across VIS, NIR and SWIR for fast, continuous industrial inspection.

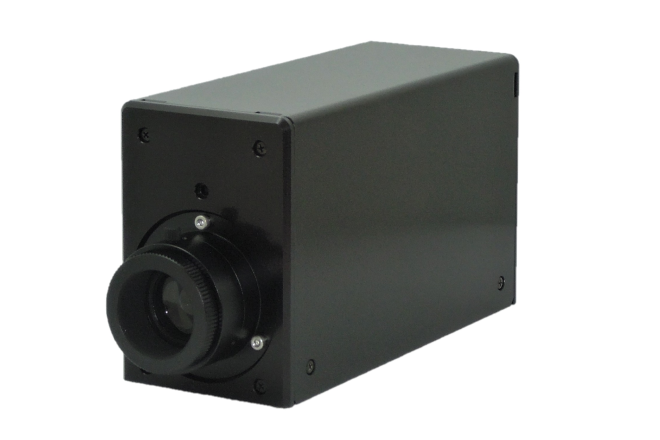

High‑accuracy prism‑based area scan cameras delivering precise multi‑channel colour imaging with perfect pixel registration across VIS, NIR and SWIR for demanding inspection.

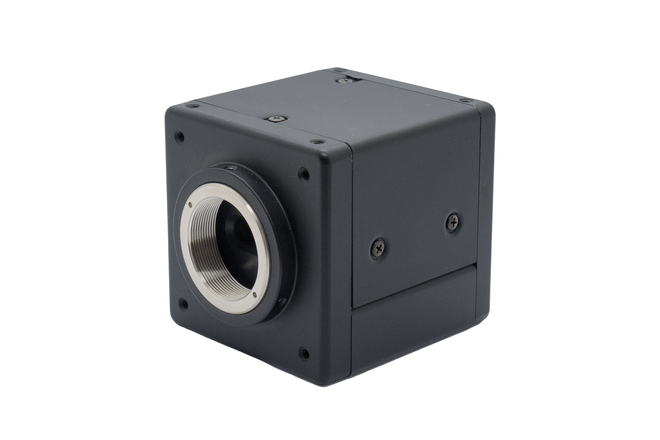

Compact camera solutions for OEM integration and application-specific tasks in constrained environments.
Technology Tags
Supporting System Integrators & OEM Machine Builders
Laser 2000 supplies BlueVision industrial imaging systems as part of complete machine vision and inspection architectures.
We support system integrators and OEM machine builders in selecting and configuring spectral and high-performance imaging cameras alongside appropriate optics, illumination and processing pipelines — ensuring sensor capabilities, spectral response and acquisition speed align with inspection objectives.
Our role is to provide technically aligned imaging building blocks and cross-domain expertise across optical sensing, illumination engineering and data acquisition architectures.
