Hyperspectral Imaging Beyond RGB
Resonon designs pushbroom hyperspectral imaging cameras that capture hundreds of spectral bands simultaneously, delivering per-pixel spectral data across the full visible and non-visible spectrum.
Unlike standard cameras that capture only three colour channels, hyperspectral cameras provide a full spectral fingerprint for every pixel — enabling the identification and classification of materials based on their unique optical properties rather than visual appearance alone.
Resonon systems are specified when inspection requires reliable material discrimination, contamination identification or chemical analysis at production-line speed — capability that is fundamentally impossible with conventional imaging.
Core Capabilities
Pushbroom Hyperspectral Cameras
Line-scan hyperspectral imagers covering UV, VNIR, NIR and SWIR spectral ranges, capturing hundreds of spectral bands simultaneously for detailed material characterisation.
Material Classification & Identification
Hyperspectral imaging enables reliable classification of materials with visually similar appearances but distinct spectral signatures — ideal for sorting, grading and contaminant detection.
Integrated Hyperspectral Systems
Complete turnkey systems including camera, lens, illumination and software — designed for laboratory and inline industrial deployment.
Chemical & Compositional Differentiation
Detect chemical composition, moisture content, ripeness and contamination where conventional RGB imaging cannot resolve material differences.
Multi-Spectral Band Processing
High spectral resolution combined with spatial imaging enables simultaneous spectral data collection across the full scene for per-pixel material analysis.
Agricultural & Food Inspection
Widely deployed in food safety, agricultural sorting and pharmaceutical inspection where precise material identification is essential to product integrity.
Typical Application Areas
Food Inspection & Contamination Detection
Hyperspectral imaging detects foreign objects, pesticide residues and microbial contamination invisible to conventional RGB systems.
Learn moreAgricultural Produce Sorting & Ripeness Grading
Spectral signatures enable automated grading of fruit ripeness, quality and defects — improving yield and consistency in harvest operations.
Learn morePharmaceutical Tablet & Coating Inspection
Detect coating defects, missing components, colour variations and tablet composition anomalies with per-pixel spectral precision.
Learn moreRecycling & Plastics Sorting
Spectral fingerprints enable reliable identification and sorting of mixed plastic streams, contaminated material lots and composite objects.
Learn moreMineralogy & Geological Analysis
Laboratory and field analysis of mineral composition, ore grades and geological surveys through hyperspectral spectroscopy.
Learn moreResonon Camera Series
Pika UV
Ultraviolet and visible range hyperspectral camera, with spectral resolution down to 2.8nm, with 255 spectral channels, 1500 spatial pixels and frame rate up to 142fps.
Pika L, Pika L-F & Pika XC2
with spectral resolution down to 2.9nm, with up to 447 spectral channels, 1600 spatial pixels and frame rate up to 585fps.
Pika IR; Pika IR+ Pika IR-L; Pika IR L+
with spectral resolution down to 3.8nm, with up to 470 spectral channels, 640 spatial pixels and frame rate up to 508fps.
Pika SWIR
The Pika SWIR hyperspectral imager is a high spatial and spectral resolution Short-Wave Infrared (1,000-2,500 nm) camera. It is compatible with Resonon's benchtop, airborne and outdoor systems.
Resonon Airborne, Outdoor and Laboratory Systems
Airborne Hyperspectral Imaging Systems
Outdoor
SpectralSight

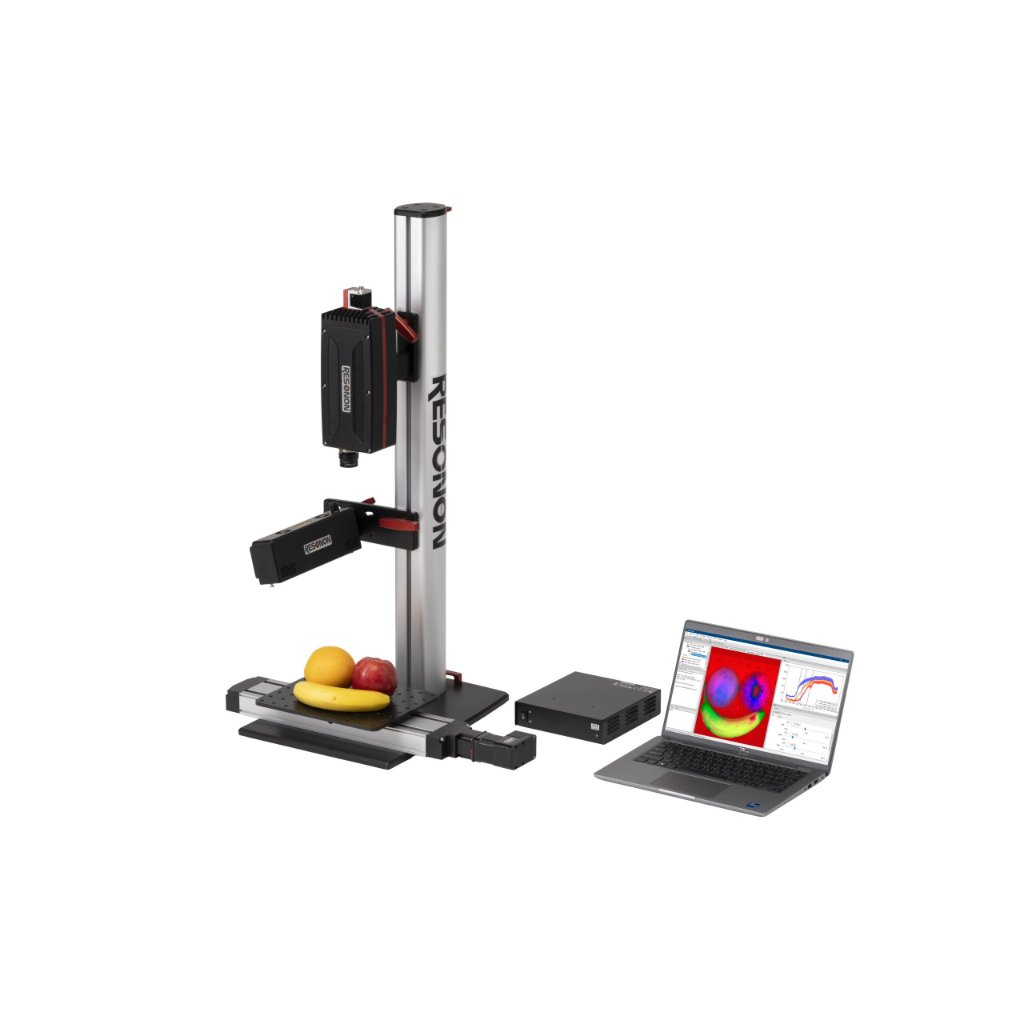

Laboratory Systems
Bio-LIF System

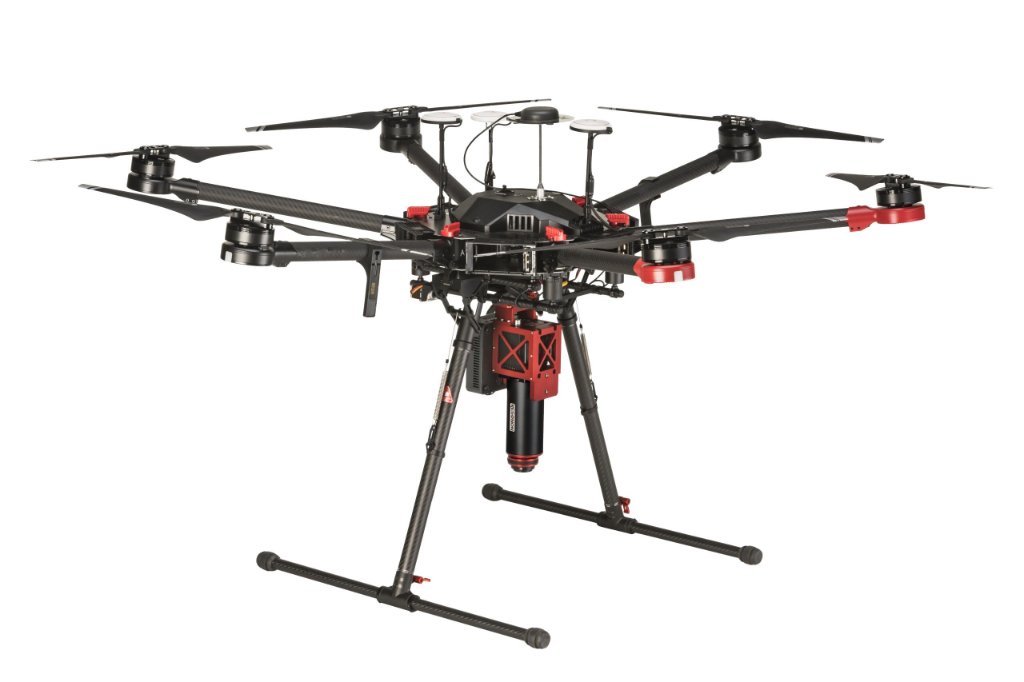

Airborne Hyperspectral Imaging Systems
Complete sensor packages for acquiring georegistered hyperspectral data. Fully-integrated, ready-to-fly hyperspectral airborne system
Technology Tags
Supporting System Integrators & OEM Machine Builders
Laser 2000 supplies Resonon hyperspectral imaging systems as part of advanced spectral inspection and analysis platforms.
We support system integrators and OEM machine builders in integrating pushbroom hyperspectral cameras with scanning motion systems, illumination design and data processing pipelines, ensuring spectral resolution, acquisition speed and system stability align with measurement and classification requirements.
Our role is to provide technically aligned hyperspectral sensing solutions and expertise across spectral imaging, motion synchronisation and data analysis architectures.
Core Imaging Techniques
Pushbroom Line-Scan Spectral Imaging
High-speed line-scan acquisition with full spectral data.
