Core Imaging Modalities
Imaging Methods That Define System Performance
Machine vision performance is defined by physics, geometry and wavelength behaviour long before software is introduced.
Selecting the correct imaging technique at specification stage reduces redesign risk, improves reliability and ensures systems perform in real production environments.
At Laser 2000, we support OEM machine builders and system integrators in defining the correct imaging architecture based on resolution, synchronisation, spectral response and environmental constraints, not simply camera format.
Machine vision starts with controlled light and controlled geometry.
These core imaging architectures form the foundation of most industrial inspection systems.
At Laser 2000, we help OEMs and integrators define the correct imaging architecture based on resolution, speed, synchronisation and optical constraints, not simply camera format.

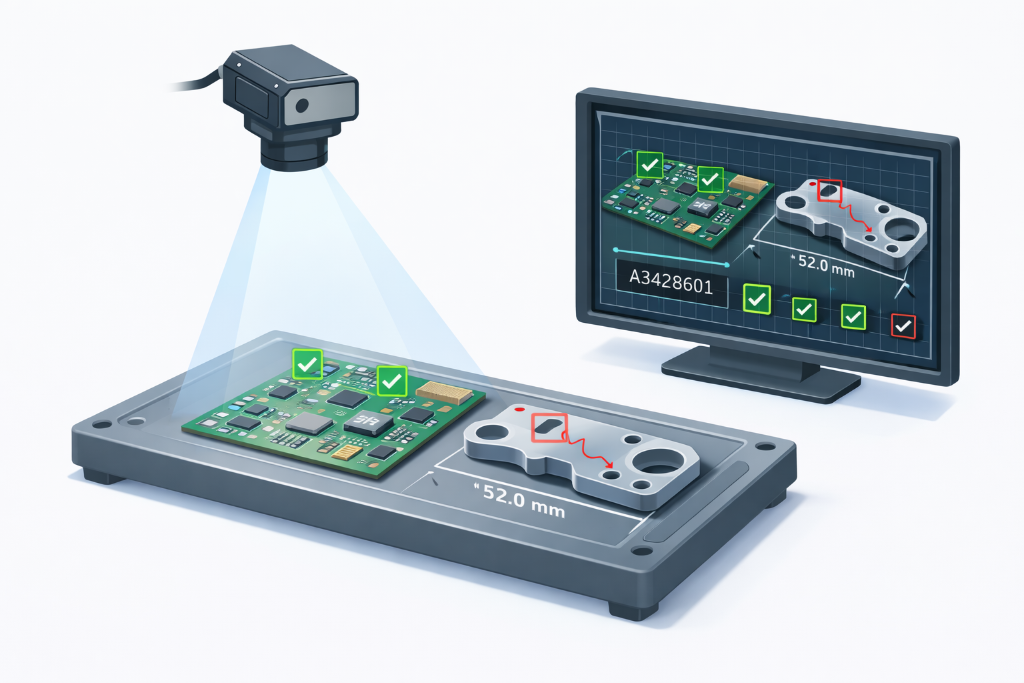

2D Area Scan Imaging
Full-frame image capture for static or indexed inspection. Area scan remains the backbone of industrial automation, ideal for part-based inspection where the entire product enters the field of view. System performance is frequently limited by illumination geometry, lens distortion, depth of field and signal-to-noise ratio, well before algorithm selection.
Typical Applications
- • Surface defect detection
- • OCR and code verification
- • PCB inspection and component validation
- • Presence / absence checks
- • Dimensional gauging
Where Engineering Matters
System performance is frequently limited by illumination geometry, lens distortion, depth of field and signal-to-noise ratio — well before algorithm selection.
Typical System Elements
- • Industrial area scan cameras
- • Precision machine vision lenses
- • Controlled illumination
- • Embedded or edge processing
Area scan imaging remains the backbone of industrial automation.
Spotlight Suppliers

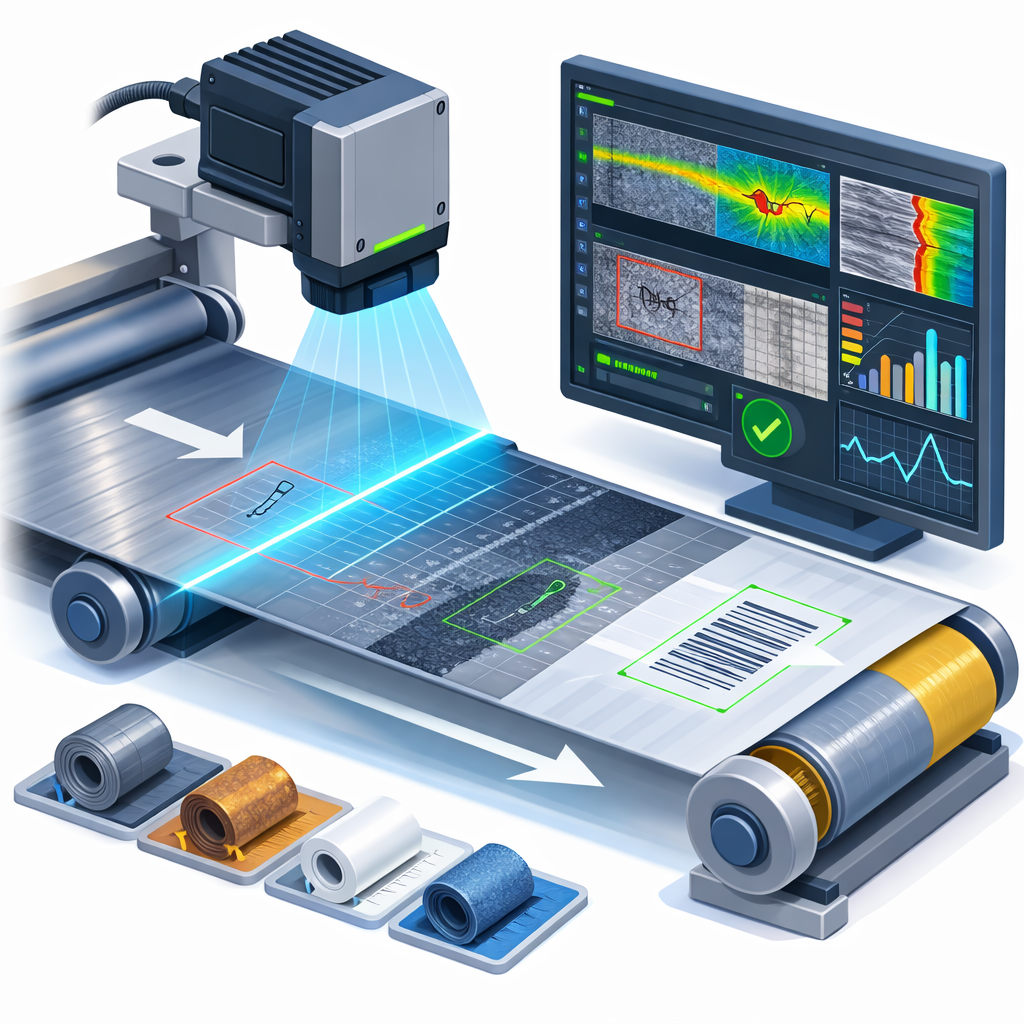

High-Speed Line Scan Imaging
Continuous inspection of moving materials and wide surfaces. Line scan systems decouple resolution from frame size, making them essential in web industries and high-speed production environments. Perfect for steel strips, textiles, battery electrodes and conveyor-based sorting where full-frame capture is impractical.
Typical Applications
- • Steel strip inspection
- • Paper, film and textiles
- • Battery electrode coating
- • Conveyor-based optical sorting
- • Wide-format surface inspection
Why It Differs from Area Scan
Line scan systems decouple resolution from frame size, making them essential in web industries and high-speed production environments.
Typical System Elements
- • High-speed line scan cameras
- • High-intensity line illumination
- • Encoder-based motion synchronisation
- • Precision optics
This is a core capability for advanced manufacturing sectors.
Spotlight Suppliers
- • Blue Vision
- • Osela
- • Zaber
